Next-gen Compact Wind PowerGenerator "TWE [TOMO Wind Energy]" (Manufactured by BIRUMEN KAGOSHIMA CO.,LTD.) has unique technology solves the biggest problem with the traditional wind turbines stable power supply is difficult due to changes in wind speed.
We have allowed for a stable power supply is less affected by the air volume for this product.

Next-gen Compact Wind PowerGenerator "TWE"
YG-1500 / YG-4000

Feature-1
Self-Contained flywheel

The output energy timecourses of commonly-used aerogenerators change grossly along with the inconstant power of natural wind.
The newly deliverd "TWE" has a self-contained flywheel which stocks the unstable wind power as stable rotation energy.
And the energy is converted to constant output of the "TWE".

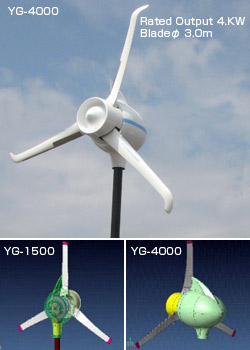

TWE Photo

Feature-2
Variable blade’s pitch angle system

  1. In the light wind, blade's pitch angle get high and rotation torque is increased, which males the wheel rotates continiously.
    (cut in wind speed:2m/sec)
  2. Stronger the wind blows,lower gets the pitch angle. But the wheel rotates fast.
  3. When the wind speed exceeds 12m/sec, the pitch angle get the highest and the wheel rotation speed stalls.
    (Automatic or manual emergency stopper(patent claimed)

Feature-3
"communications equipment for monitoring"

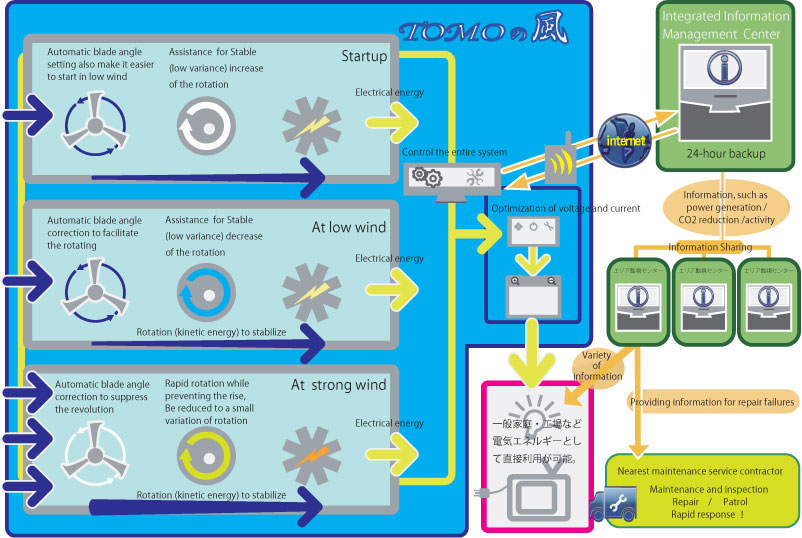

※TWE System scheme(Click to enlarge)
TWE System scheme

This product is "communications equipment for monitoring" connecting to the Internet has been built. It will send the real-time information obtained from the controller to "Integrated Information Management Center". This way, we are managing the operating status of the product were placed around, centrally.
Monitoring contents are the more power situations, of course, environmental informations such as wind power, and other mechanical problems. By feeding the information to be integrated to "Area's Control center" for each area, We provide informations to end users.The informations provided are variety of informations relating to the operation of each TWE, and the information on the total power generation by region, and so on.
At the same time we check on the repair system for the prompt service.

Feature-3
Stability of TWE

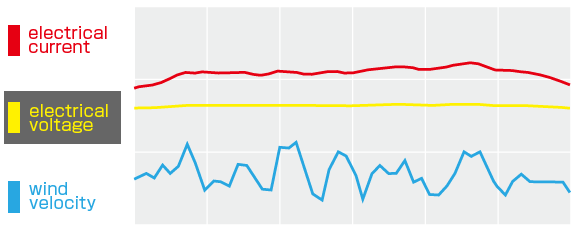

※Data showing the stable output of the TWE.
Data showing the stable output of the TWE.

Click here for measurement data TWE YG-4000

- patents claimed, field international patent application through PCT route, applied for trademark registration, applied for design registration. And Patent applications in Taiwan-

-Under Development-

  1. TWE YG-8000 (8000wh)
  2. Water Power Generator
